Woven Gabions

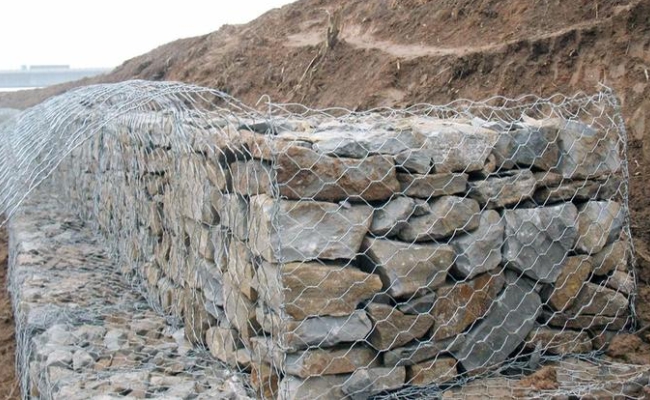

– Gabion is a double twisted wire mesh container of variable size, uniformly partitioned into internal cells, interconnected with other similar units and filled with stones at the project site to form flexible, monolithic structures such as retaining walls, sea walls, channel linings, revetments for erosion control projects.
Gabions Are Available In Two Types Of Coating:
1. ZINC COATED
2. ZINC + PVC COATED
Advantages of Gabion Box
- Higher resistance to natural forces due to better tensile strength
- Gabion boxes are very cost-effective and easy to handle.
- They are highly flexible
- Permeability to water (Good Drainage)
- Easily blends with the surroundings

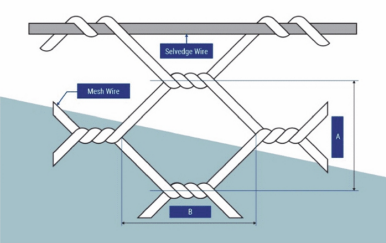

- Wire Thickness: 2.70mm to 3.00mm
- Wire Selvedge wire Thickness: 2.70mm to 3.00mm
- Lacing wire Thickness: 2.20mm to 2.40mm
- Zinc coating Thickness: Min. 275 GSM
- MESH SIZE: 60mm to 80mm/80mm to 100mm/100mm to 120mm
- Box size: Customized as per project requirements
- PVC coating thk. for Zn + PVC coated boxes: 0.50mm, (1.0 mm on core wire)
What is Included
Barbed wire is primarily used for security fencing, livestock control, property boundaries, and perimeter protection in agricultural, industrial, and residential areas.
Galvanized and PVC-coated barbed wire typically lasts 10–20 years, depending on weather conditions and installation quality.
Yes, it is widely used for livestock such as cattle, buffalo, and horses. However, it is not recommended for very small or delicate animals due to the sharp barbs.
Single strand: Lightweight and suitable for low-security or small fencing projects
Double strand: Stronger, more durable, and used for higher-security or long-distance fencing
Yes, barbed wire is often used along with chain-link fencing, weld mesh, or boundary walls to create an extra layer of security.
